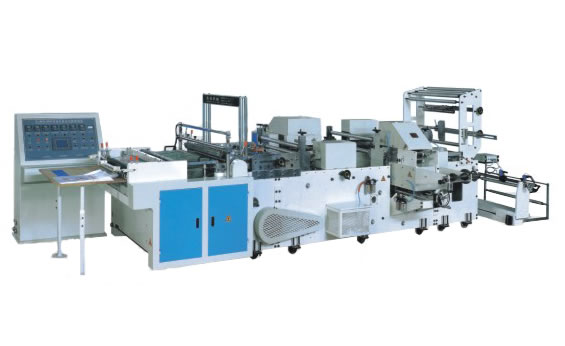

XY-800 automatic computer control Paige bag bag multi-purpose bag
Features:
The whole machine adopts microcomputer control, with Panasonic servo motor control system, arbitrarily fixed length, step photoelectric tracking, accurate, stable, lost standard automatic shutdown, automatic pressure synchronous punching and synchronous sealing. Automatic counting, the alarm can be set to count. Automatic thermostat, seal securely.
The main technical parameters:
Model Paige bag (Patch bag) JP-32RP bag (Handle bag) JP-32RP
Making large width 600mm 450mm
Making large length 700mm 700mm
Production speed 20-45cycle / min 10-25cycle / min
Film thickness L.D.0.045-0.07mm
H.D.0.025-0.035mm
L.L.D.0.025-0.07mm L.D.0.045-0.07mm
H.D.0.025-0.035mm
L.L.D.0.025-0.07mm
Total power 8kw 8kw
Package dimensions 2100mm 2100mm
Weight management 2800kg 2800kg
Dimensions 7200 × 2000 × 1850mm 7000 × 2000 × 1850mm
|
