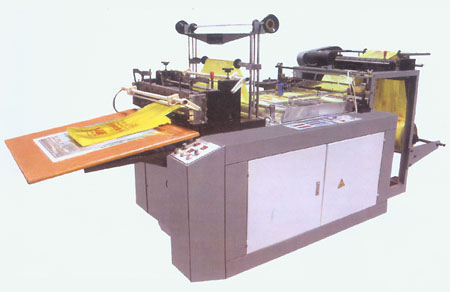

CFQ-500 type GFQ-700 type computer-controlled film sealing and cutting machine
The machine has a photoelectric tracking, fixed-length computer, automatic counting, pneumatic punching, the number of alarm functions. Suitable for PE, OPP, BOPP and other plastic materials automatic heat sealing and cutting production of knitting, clothing, food, stationery and other packaging, is to replace imported products, advanced equipment bag. Product Details cut material width 650mm cutting length 35-1000 mm Dimensions 2650 × 1400 × 1350mm slitting accuracy of ± 1mm maximum cutting speed of 50-250 beats / min Basic Information Product Name computer-controlled heat sealing and cutting machine Model origin Ryan GFQ -700 type product Description the machine has a photoelectric tracking, fixed-length computer, automatic counting, pneumatic punching, the number of alarm functions. Suitable for PE, OPP, BOPP and other plastic materials automatic heat sealing and cutting production of knitting, clothing, food, stationery and other packaging, is to replace imported products, advanced equipment bag.
Uses:
Suitable for low density polyethylene (LDPE), high density polyethylene (HDPE) film sealing and cutting qualities of bags, color bags. Widely used in food packaging, clothing packaging, industrial, electrical product packaging.
Features:
1, bag automatic counting, automatic alarm.
2, photoelectric eye tracking properly, bag error over four hours the machine automatically shut down.
3, bag length is controlled by buttons.
The main technical parameters:
Model GFQ-500 type GFQ-700 type
The maximum sealing and cutting width of 500mm 650mm
Sealing and cutting length 80000min 1000min
Sealing and Cutting Thickness 0.004-0.10mm 0.004-0.10mm
Length error ± 1mm ± 1mm
Speed bag 40-120pcs / min 40-120pcs / min
Main motor power 1.1kw 1.5kw
Heating power 1.2kw 1.5kw
Total power 2.5kw 3.2kw
Machine weight 700kg 820kg
Dimensions (L ×) W × H) 2650 × 1200 × 1350mm 2650 × 1400 × 1350mm
|
