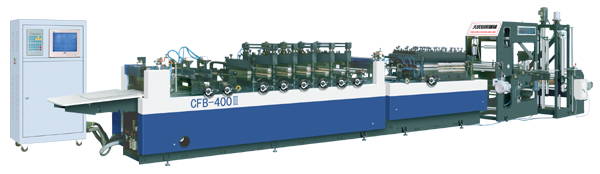

TCJ-CFB-400 / 600Ⅲ computer-controlled multi-purpose bag
Details:
The bag making machine is an advanced machine, electricity, gas integration equipment. Using a large pressure on the mechanical structure, the main motor and the motor discharge by frequency control, traction components using servo motors, traction rubber roller pressure, tension, times sent by pneumatic control. Electrical aspects of industrial computer control, by the color CRT screen displays the status of the dynamic parameters of the production process. These include: Making a fixed length, the actual length, speed, quantity, batch number, alarm, track, traction tension, heating temperature, synchronous discharge, downtime, delivery times and other options.
Making this kind of multi-bag machine can produce composite film side sealing, stand-up pouches, zipper bags. Finished bag made of smooth, crisp, no scratches, beautiful shape, high edge of the heat seal strength, high bag precision, speed, pressure, low noise, long life, stable performance, great food and many other industries ideal choice for packaging and decorating equipment.
Technical parameters:
Description CFB-400 / 600Ⅲ computer controlled multi-purpose bag
Bag size width 50-400mm (Zipper Bag widest 350mm) length 70-300mm (over 300mm using times sent way)
Sealing width 10-20mm two kinds of longitudinal sealing, transverse sealing 10,20,30,40,50 (mm) five kinds
Reliance hot strip 600mm
Independence hot hot mold a film sample pay, other specifications according to specifications supplied or custom bag.
Speed bag triangular envelope 60-150 segment / min, self belt clip chain bag 30-100 segment / min
Maximum operating speed of 45m / min
Electric heating power 28kw (vertical sealing 10KW, horizontal sealing 12KW, clip chain 3KW, stand-up pouches 3KW)
Temperature control computer control
Main motor 2.2KW inverter motor
The maximum diameter of the roll size 600mm, width 150-900mm
The total capacity 33.5KW
Dimensions (1 × b × h) 9080 × 1410 × 1900mm
Total weight 3500Kg
|
