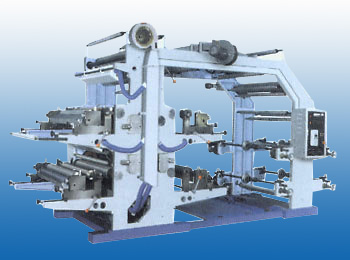

Four-Colour Flexographic Printing Machine
Four-Colour Flexographic Printing Machine Main Technical Variables:
|
Model of Machine
|
YT-4600
|
YT-4800
|
YT-41000
|
|
Max.Width of Printing Material
|
600mm
|
800mm
|
1000mm
|
|
Max.Printing With
|
560mm
|
760mm
|
960mm
|
|
Length Range of Printed Product
|
191-914mm
|
191-914mm
|
191-914mm
|
|
Max.Diameter of Roll Material
|
φ450mm
|
φ450mm
|
φ450mm
|
|
Printing Speed
|
5～50m/min
|
5～50m/min
|
5～50m/min
|
|
Thickness of plate(Including Two-sides Glue Paper)
|
2.38mm
|
2.38mm
|
2.38mm
|
|
Total Power
|
10.87kw
|
12.5kw
|
14.37kw
|
|
Weight of Machine
|
3000kg
|
3500kg
|
4000kg
|
|
Overall Dimensions
|
4200×1600×2400mm
|
4200×1800×2400mm
|
4200×2000×2400mm
|
|
|
