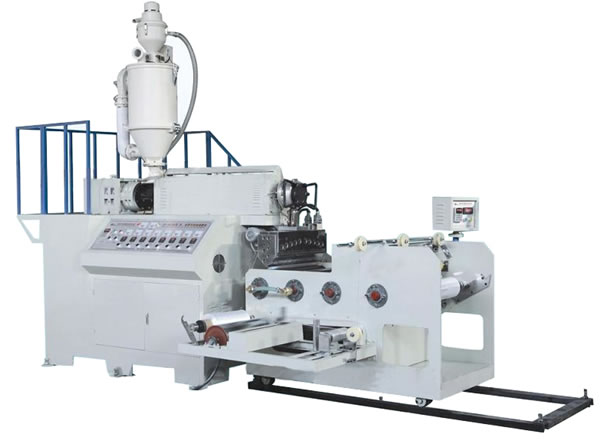

XY-55/65 single-, double-extrusion stretch film machine
The main technical parameters: Model XY-55 XY-65
Screw diameter 55mm 65mm
Screw length 28: 1 (L / D) 28: 1 (L / D)
Screw speed 10-120rpm 10-120rpm
Products width 200-500mm 200-500mm
Thickness 0.015-0.04mm 0.015-0.04mm
Main motor power 15kw 18.5kw
Heating power 15kw 20kw
Machine weight 2.2T 3T
Dimensions 5600 * 1500 * 1800mm 6000 * 1500 * 2500mm
|
