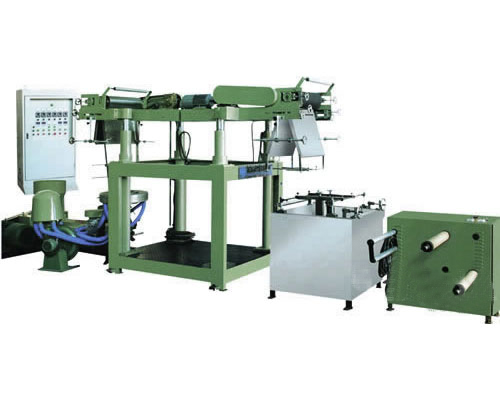

SJ-50-55-60 type PVC shrink film production line
Uses:
PVC heat shrink packaging film is mainly used audio and video products, toys, magazines, glassware, high-quality wood flooring, dry packaging and so on.
Features:
PVC heat shrinkable packaging film is characterized by high strength, good transparency, waterproof, moisture, pollution prevention ability, have excellent insulation properties, use it to do the packaging material, not only
Simplify the process of packing bags, shrink packaging volume, and because of the transparent film shrink wrap after package items, clearly showing the color and shape of the object. It is widely used in packaging.
Technical parameters:
Model
SJ50
SJ55
SJ60
Performance
Use of raw materials
P.V.C
Thickness (mm)
0.02-0.08
0.02-0.08
0.02-0.08
Width (mm)
70-300
150-500
200-700
Yield (kg / h)
8-40
15-50
20-60
Extruder
Screw diameter (mm)
Φ50
Φ55
Φ60
Screw length
28: 1
28: 1
28: 1
Host Motor (kw)
11
15
18.5
Electric capacity (kw)
10
13.7
18.5
Die
Die diameter (mm)
Φ40 / 80
Φ60 / 120
Φ80 / 140
Die Electric (kw)
1.8 / 2.2
2 / 2.5
3 / 3.5
Coiler
Coiling capacity (mm)
Φ400 × 400
Φ400 × 600
Φ400 × 800
Winding motor (kg / Nm)
10
15
20
Other
Machine weight (T)
1.5
1.8
2.2
Mechanical Dimensions (M)
4 × 1.4 × 2.5
6 × 2.5 × 3.5
6.2 × 2.7 × 3.8
The above text descriptions and specifications are subject to change without notice.
|
