SJFM800-1800 high-speed extrusion film compound unit
SJFM800-1800 high-speed extrusion film compound machine

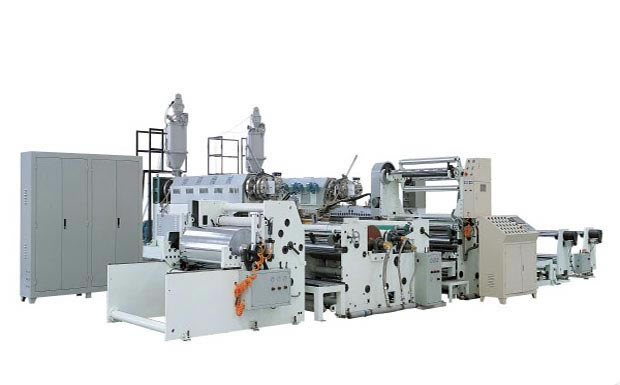

Product Name: SJFM800-1800 high-speed extrusion film compound machine unit
Main features: This series of products of paper, plastic film, textile cloth or aluminum foil as a substrate, by drooling into a complex story, three or more layers of new materials, chemical products as cement, feed, chemical products as cement, feed, food , medicine, cloth tape, plastic cups, snack boxes and other packaging supplies.
Applications: * paper-plastic composite paper plastic compound aluminum plastic composite adhesive series
Production Type: * Single film compound layer (sandwich) composite multi-
layer (which can be a one-time seven composite)
extrusion film compound machine Main technical parameters:
Item / Model SJFM-800 SJFM-1100 SJFM-1300 SJFM-1600 SJFM-1800
Die lip length 900mm 1200mm 1400mm 1800mm 2000mm
Product Width 400-700mm 500-1000mm 600-1250mm 800-1500mm 900-1700mm
The maximum composite speed 80-110m/min 80-110m/min 80-110m/min 60-
110m/min 60-110m/min
Laminating thickness 0.01-0.03mm 0.01-0.03mm 0.01-0.03mm 0.01-0.03mm 0.01-0.03mm
Screw diameter aspect ratio of 32:1 32:1 32:1 32:1 32:1
Retractable roll diameter than ?1200mm ?1200mm ?1200mm ?1200mm ?1200mm
Dimensions 12000×6000×3200 12500×7000×3200 13000×8000×3200 12000×9000×3200 13000×12000×3200mm
Installed power 60kw 70kw 80kw 100kw 130kw
Composite / mirror cold stick ?510mm ?510mm ?510mm ?510mm ?510mm
Aluminum foil for paper substrates
|
