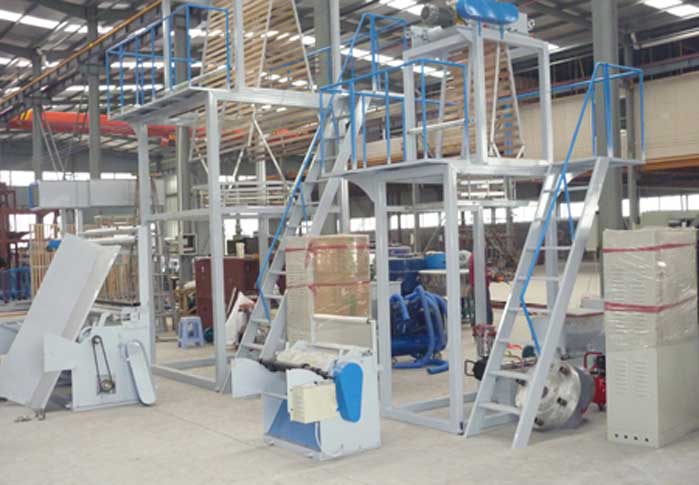

High voltage film blowing machine
High voltage film blowing machine Uses: High-density polyethylene and blowing and blowing film line blend of various liquid packaging film, printing composite film, degradation of film. Main parts: Barrel and screw with 38CrMOALA alloy steel. The nitrided, high hardness, good wear resistance and durability. Specific: 1, the take-up by using a large plastic Kun collection, distribution magnetic clutch (single income and double income); 2, can be equipped with rotary die; 3, the main motor with variable frequency motor.
High voltage film blowing machine Main technical parameters:
Model SJ-50FM600 type SJ-55FM800 type SJ-60FM1000 type
Screw Diameter 50mm 55mm 60mm
Screw L / D L/D28: 1 L/D28: 1 L/D28: 1
Screw speed 10-120r/min 10-120r/min 10-120r/min
Main motor power 18.5kw 22kw 30kw
Out the amount of 30-60kg / h 40-80kg / h 50-100kg / h
Maximum film diameter 600mm 800mm 1000mm
folded Film thickness 0.008-0.10mm 0.008-0.10mm 0.008-0.10mm
Auxiliary lift range 800mm 1000mm 1200mm
Total Power 28kw 36kw 42kw
Machine weight 2600kg 3000kg 3500kg
Dimensions (L × W × H) 4600×2600×4000mm 4800×2800×4300mm 5000×3000×4800mm
|
