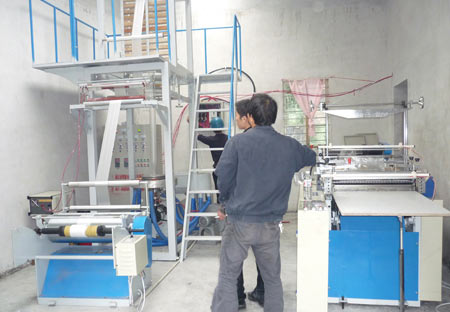

Polyethylene (PE) heat shrinkable blown film unit
Polyethylene (PE) heat shrinkable blown film unit Features:
The unit extruder barrel and screw are made of high quality alloy steel, tight nitrogen treatment and precision machining, with the best hardness and corrosion resistance, the special designed screw, high output, good plasticity. For blowing low density polyethylene (LDPE) High density polyethylene (HDPE) Linear Low Density Polyethylene (LLPE), such as plastic film, widely used in food, clothing, garbage bags, vest bags and other consumer and industrial packaging.
Polyethylene (PE) heat shrinkable blown film unit Main technical parameters:
Model SJ-50FM600 type SJ-55FM800 type SJ-60FM1000 type
Screw Diameter 50mm 55mm 60mm
Screw L / D L/D28: 1 L/D28: 1 L/D28: 1
Screw speed 10-120r/min 10-120r/min 10-120r/min
Main motor power 18.5kw 22kw 30kw
Out the amount of 30-60kg / h 40-80kg / h 50-100kg / h
Maximum film diameter 600mm 800mm 1000mm
folded Film thickness 0.008-0.10mm 0.008-0.10mm 0.008-0.10mm
Auxiliary lift range 800mm 1000mm 1200mm
Total Power 28kw 36kw 42kw
Machine weight 2600kg 3000kg 3500kg
Dimensions (L × W × H) 4600×2600×4000mm 4800×2800×4300mm 5000×3000×4800mm
|
