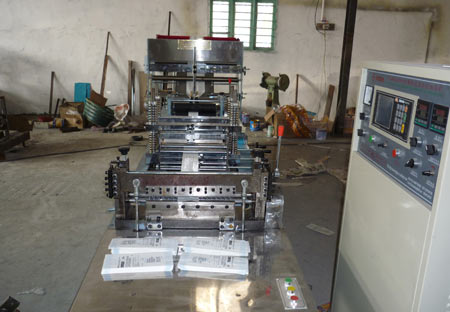

FBD-350-type sealed paper bag making machine (environmental)
This FBD-350-type sealed paper bag making machine (environmental) is our introduction of advanced technology, combined with the advantages of similar products, the design and manufacture, set light, electricity, high speed automatic machines as one paper bag machine. This machine has a continuous discharge, continuous fold, glue a row, the middle bag with discontinuous conversion function. The machine uses computer-controlled, stepper or servo pull material length, photoelectric tracking, suitable for environment-friendly paper in the envelope of the system to do. (You can also making plastic bag)
FBD-350-type sealed paper bag making machine (environmental) Technical parameters:
Project FBD350
Unwinding diameter of the largest Φ600mm
Unwinding the maximum width of 720mm
Speed bag ≤ 150pcs/min Bag width ≤ 350mm
Bag length 50-1000mm
Bag accuracy ± 0.5mm
Total power 12kw
Gas source 0.6Mpa
Cooling water 15L/min
Weight About 3000kg
Dimensions 7000 × 1020 × 1400mm
|
