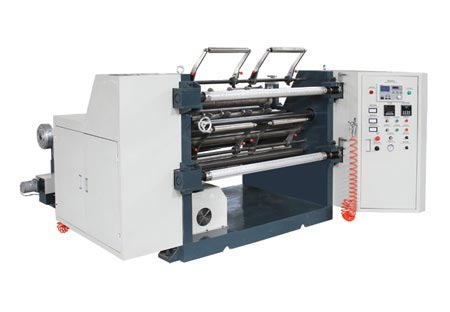

FQB-1300W Horizontal Cutting Machine
Horizontal Cutting Machine Profile：This machineissuitable for splitting PET, CPP,PE,PS, PVCand variouspapers and film rollers etc it is ideal equipment for paper making plastic andprinting packing indeustrices
Horizontal Cutting Machine Main features：1 The operating interface of the controling system can be done directly in front and back of the machine,and the operation is easy and conventient . 2 host adopts three-phase asynchronous motor, which can realize frequency conversion. 3 work can be automatically adjust feeding tension membrane (feeding adopts automatic tension control system). 4 tracting pressing roller adopts horizontal pushing type cylinder roller, Is film doesn’t skid. 5. Ed by synchronous motors, gleaning precision ball screw, especially photo-sensor. Using the straight-line bearing slippery course schedule, mobile 130mm, automatic struggle plait make more precise cutting flat. 6 using flat cutting knife cutting and circular knife cutting. 7. Fabian automatic processing equipment. 8 coiling automatic processing device j. 9 winding shaft adopts horizontal rotary biaxial rewinder design, single operation. 10. With automatic meter, homework can be calculated when the number of meters. 11. The guide roller are all can adjust horizontally and vertically to eliminate raw materials.
Horizontal Cutting Machine Main technical parameters：
|
寬度
|
Max.Width
|
1300mm(Special order)
|
|
原料直徑
|
Max.Unwind Diameter
|
ф1000mm
|
|
收卷直徑
|
Max.Rewind Diameter
|
ф500mm
|
|
分切尺寸
|
Cutting Width
|
30-1300mm
|
|
紙芯內(nèi)徑
|
Lnner Dia
|
ф76m
|
|
分切厚度
|
Cutting thickness
|
10-75um(Flat knife cutting)
10-350um（Circular knife cutting）
|
|
分切速度
|
Speed
|
200m/min
|
|
糾編精度
|
Accurancy
|
±0.3mm
|
|
總功率
|
Power
|
About 4.8 kw
|
|
機(jī)器重量
|
Weight
|
About2800kg
|
|
外形尺寸
|
Overall Dimension
|
3000×2750×1520mm
|
|
