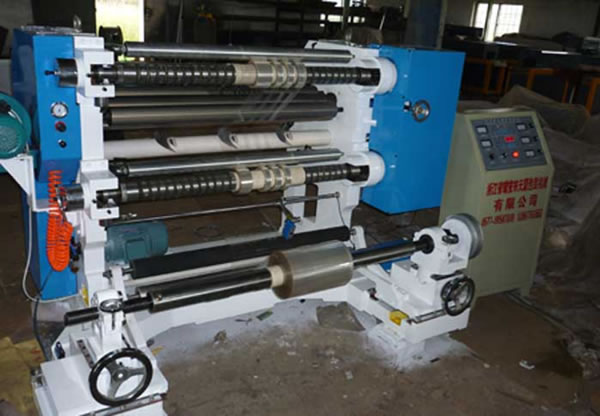

TCJ-WFQ-1000/1300 automatic computer control Slitter
WFQ-1000/1300 automatic computer control Slitter
Details：The machine has a photoelectric tracking, automatic correction, automatic Jimi number, receiving the magnetic clutch control, discharge tension control, simple, stable and reliable. Mainly used in plastic film, cellophane decile cut.
automatic computer control Slitter Technical parameters
Computer controlled automatic cutting machine that WFQ-1000/1300
diameter discharge 600 mm
Cutting width 1100/1400 mm
Correction accuracy of ± 0.5 mm
Cutting speed 160 m / min
20-1000 mm cut size
Operating voltage 380 V
Main motor 3 kW motor slip
Dimensions 2200 × 1300/1800 × 1400 mm
Weight 1500 (1800) kg
|
